| Oscillator | Frequency range | 1Hz to 100kHz |
| Frequency resoltion | 1-99.99Hz=0.01Hz, 100-999.9Hz=0.1Hz, 1000-9999Hz=1Hz and > 10kHz=10Hz. |
| Output voltage | 0 to 2V pk-pk into 3Ω load (0.707V R.M.S into 3Ω, 1.5W) limited by |
| software for health and safety reasons. |
| Output monitor | 0 to 2V pk-pk from BNC socket on rear panel for oscilloscope 'X' input. |
| Input monitor | 0 to 2.5V pk from BNC socket on rear panel for oscilloscope 'Y' input. |
| Display | Frequencies, voltages and option menus displayed on a 20 character × |
| 4 line liquid crystal display. |
| Keypad | 16 key sealed membrane, for entering data and control parameters. |
| Drivers | Large mass specimens | 3Ω contact vibrator |
| Small mass specimens | Electro-magnetic air gap driver |
| Vibration | Large mass specimens | Miniature crystal accelerometer |
| Sensors | Small mass specimens | Electro-magnetic air gap receiver |

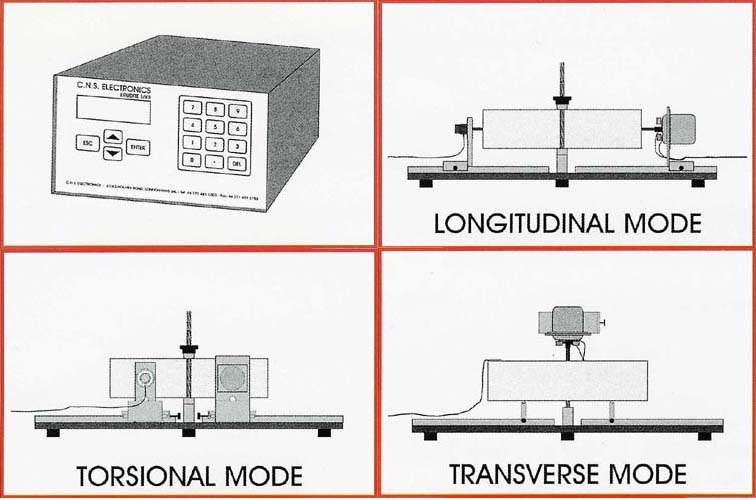

| | Transverse Mode | Surface mounting sensor |
| Environmental | Power supply | 110/ 230V, 50/ 60Hz single phase AC(user selectable) |
| Operating Temperature Range | 0℃ to 40℃ |
| Dimensions | Electronics Unit-307×215×140mm, Test Bench-360×915×360mm |
| Complete standard test system | 970×400×470mm |
| packed in 1 carton,Dimensions |
| Weights | Gross-33kg, Net-28.8kg |
